POTHOLE PATCHING PRODUCTS

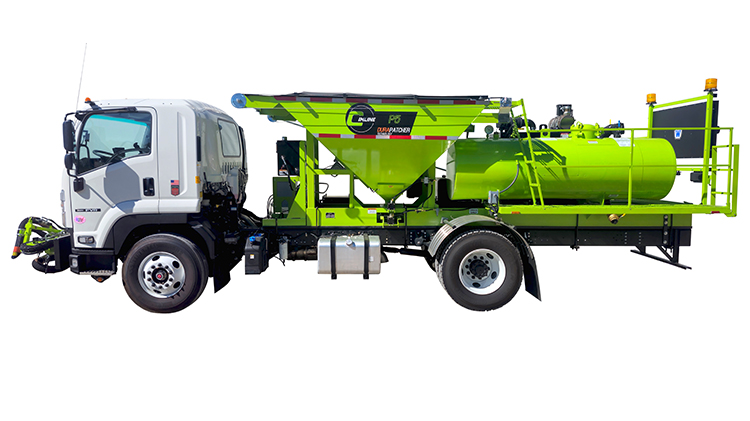

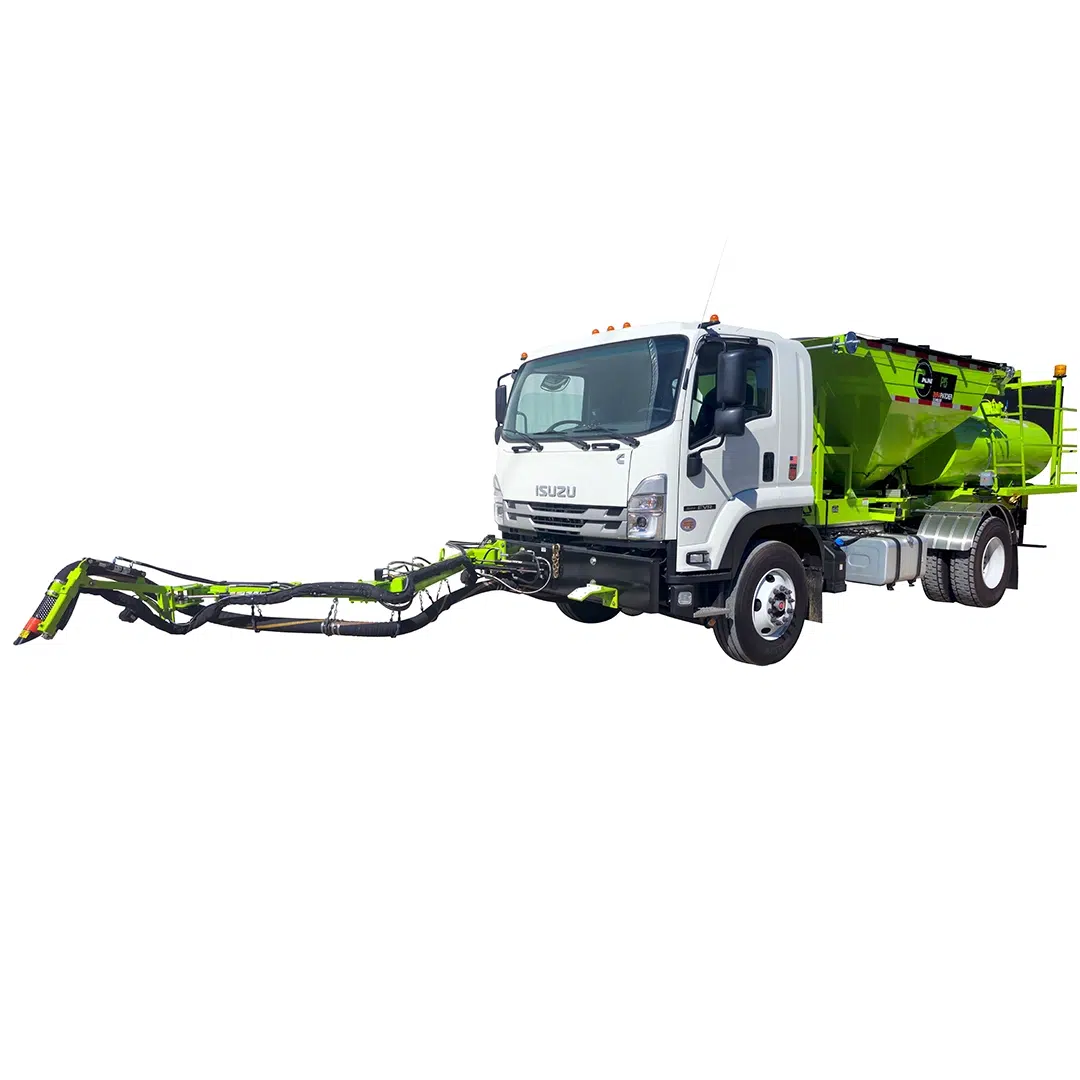

P5™ One-Person Patcher with DuraPatcher™ Technology
Benefits:
- Safe and simple pothole patching machine with a one-person crew from the comfort of a cab
- Maximizes your budget by never having to patch the same pothole twice
- Faster and simpler patching process that limits public disruption
Featuring:

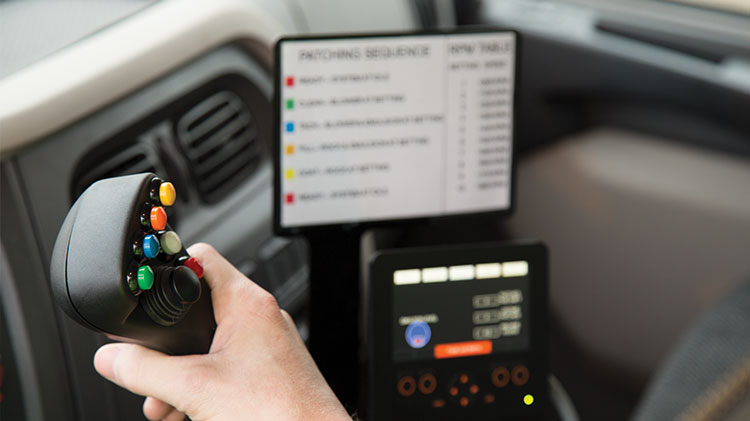

- Intuitive joystick controls allow operators to learn quickly as well as provide total comfort

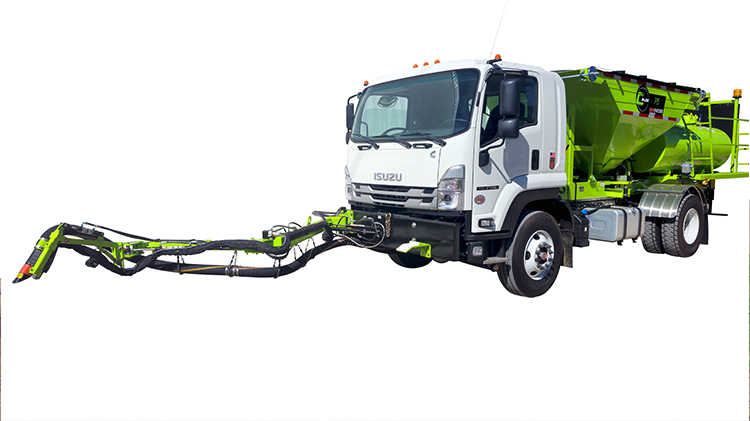

- Unique, 3-section boom and nozzle are easily maneuvered for ultimate accuracy
- Pressurized 300-gallon emulsion tank with electric blanket heating allows you to be ready to patch first thing in the morning

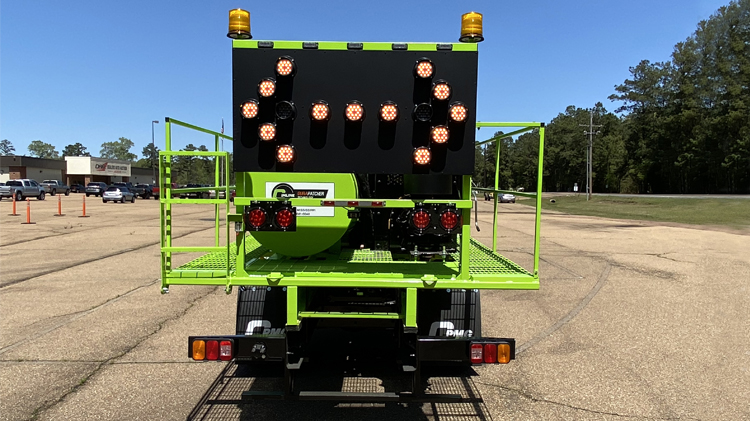

- Large directional arrow board and dual strobe lights increase safety
- Heated emulsion tank provides enough product to apply over 10 tons of patch material
Maximize Your Budget

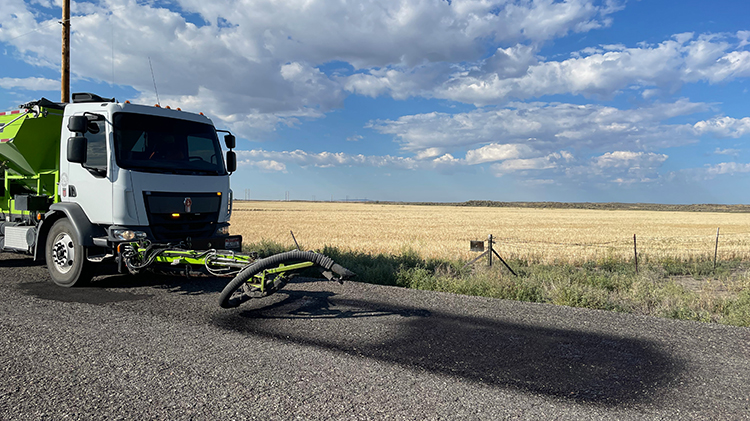

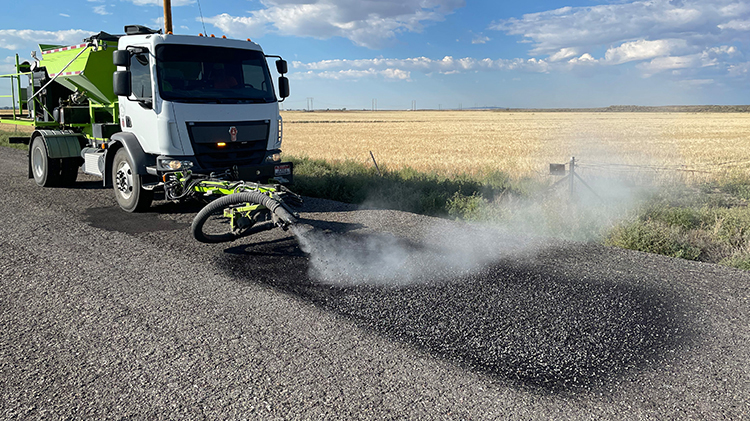

The DuraPatcher™ P5 is a safe, fast and simple pothole patching machine, operated by a single crew member, that minimizes public disruption and maximizes pavement repair efficiency.
A Permanent Patch in Four Easy Steps:
DuraPatcher™ Technology allows you to patch in almost any weather conditions and eliminate labor-intensive, poor performing patches. The DuraPatcher™ 4 step process is easy to learn and adapts to many different pavement applications.

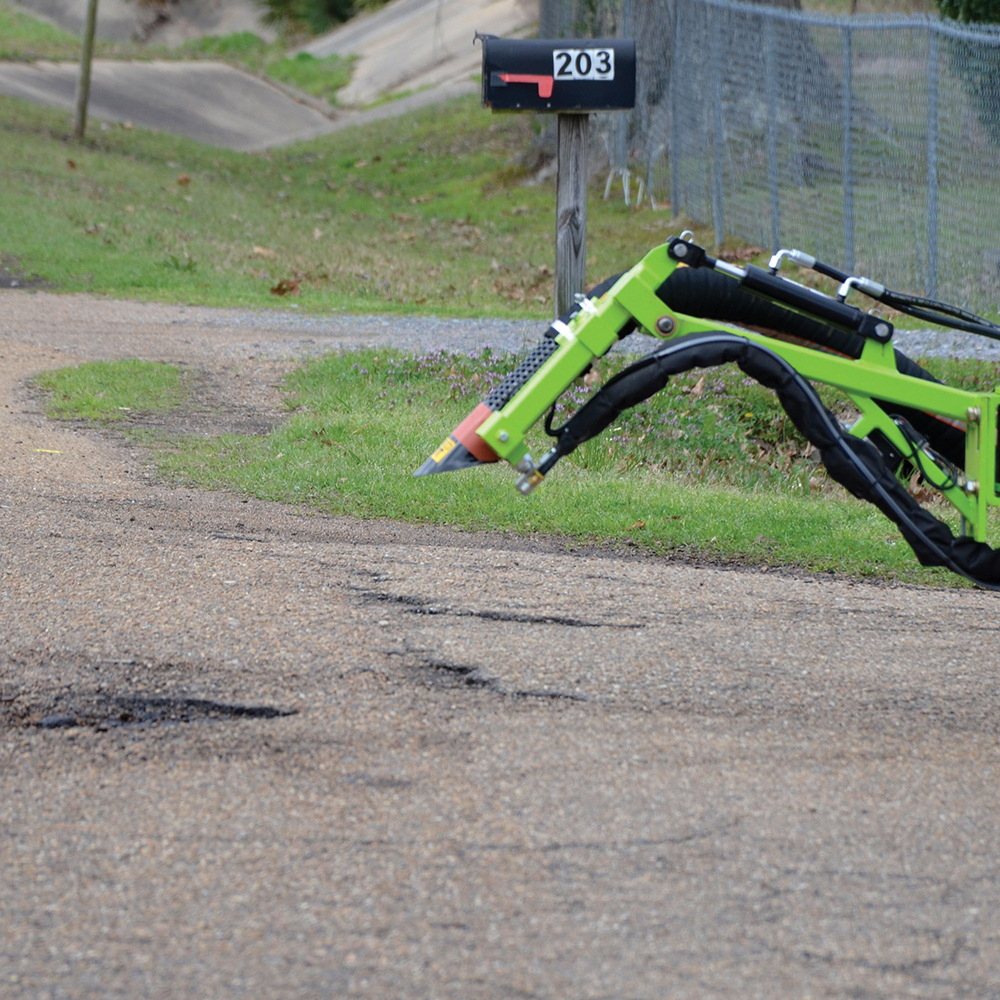

1. Clean:
Use high-volume low-pressure air to clean the patch of debris.

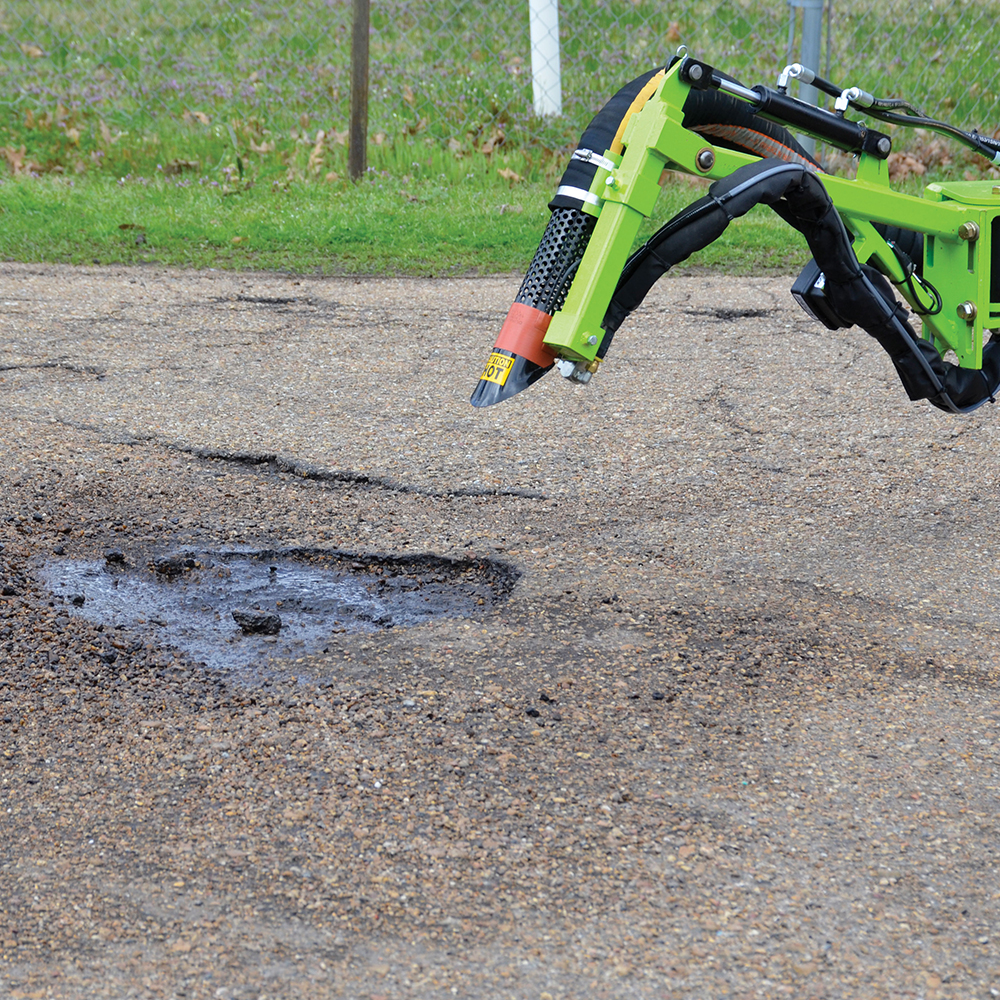

2. Tack:
Prep the patch with a coating of emulsion.

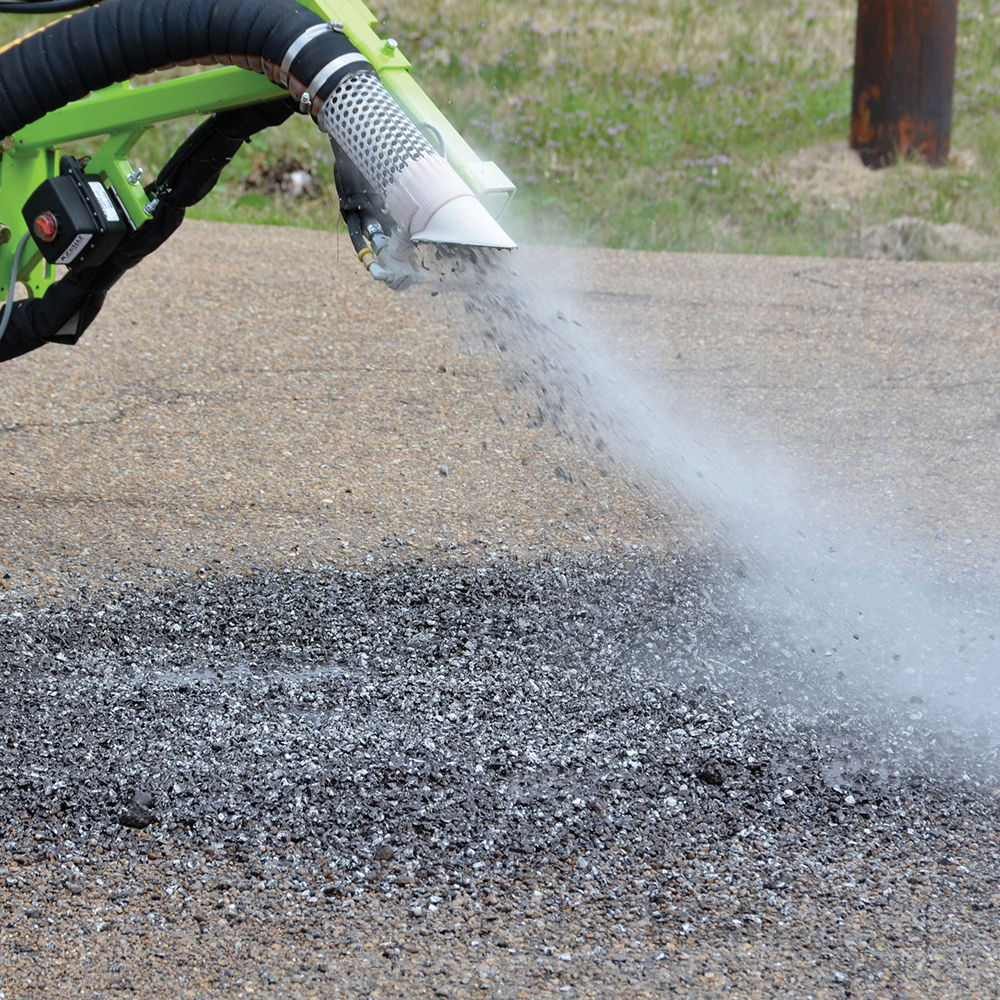

3. Fill:
Inject emulsion coated aggregate and fill pothole.

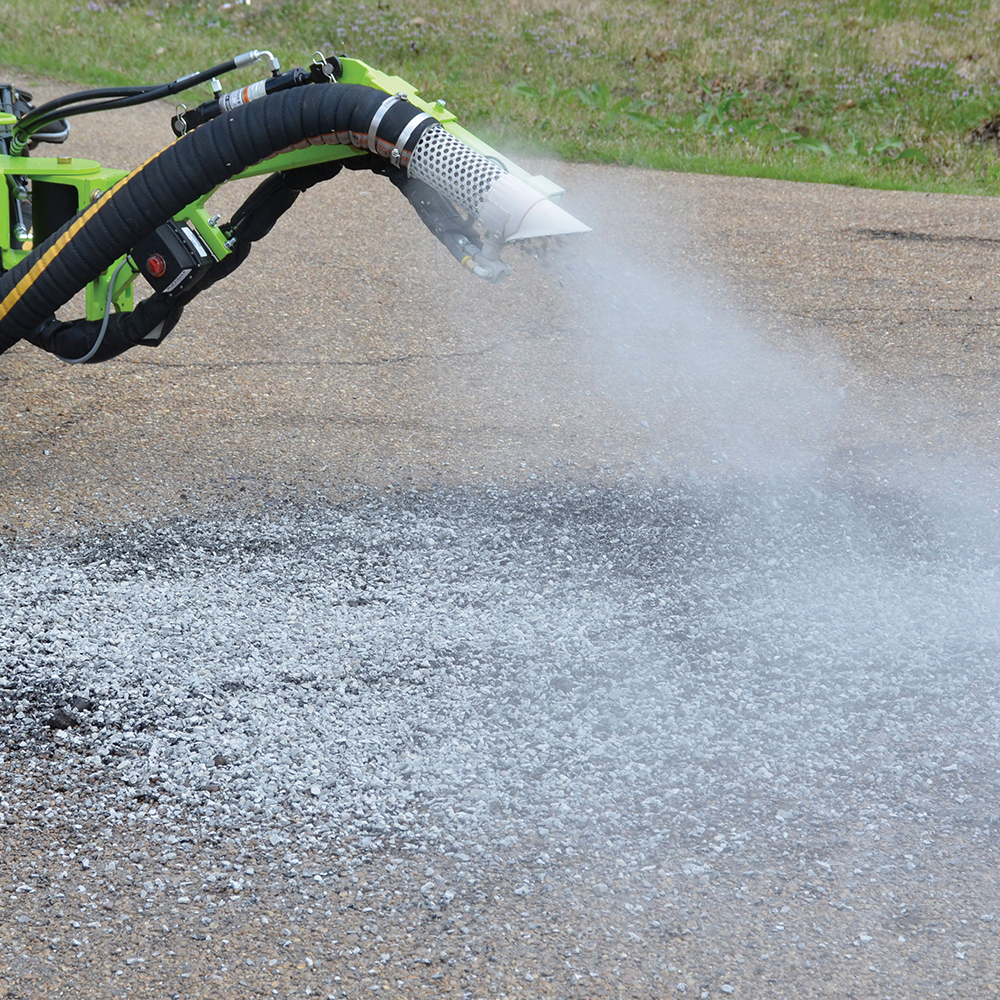

4. Coat:
Apply a light coating of clean aggregate and open to traffic.
SPECIFICATIONS
| Emulsion Capacity: | 300 gallons |

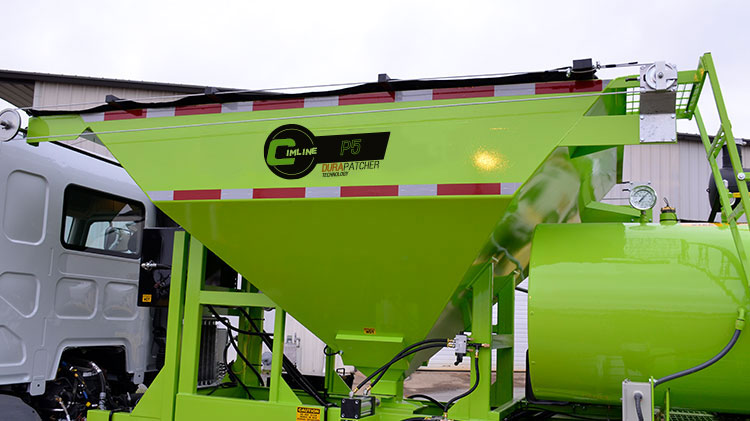

| Aggregate Capacity: | 5 yards |
| Engine: | 74 HP Tier 4 Final Engine |
| Heating Method (overnight): | Electric Blanket |
| Heat Rating: | 2 x 1500 Watts |
| Tank Insulation: | R 15 |

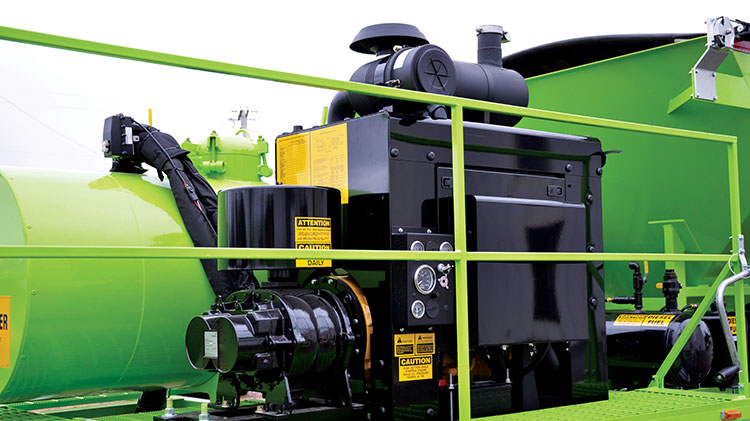

| Blower: | 450 CFM at 1500 RPM, 10 PSI |
| Clean Out: | 15 gallons |
| Fuel Capacity: | 18 gallons |
| Construction: | 10” channel main frame |
| Drain Valve: | 3” |
| GVW: | 33,000 lbs. |
| Chassis: | Isuzu |
| Chassis Transmission: | Allison 2500 6 Speed |
| Axles: | Front- 12,000 lb. I Beam Rear- 21,000 lb., 5.57 Axle Ratio |
Due to continuous improvement, specifications are subject to change without notice.
